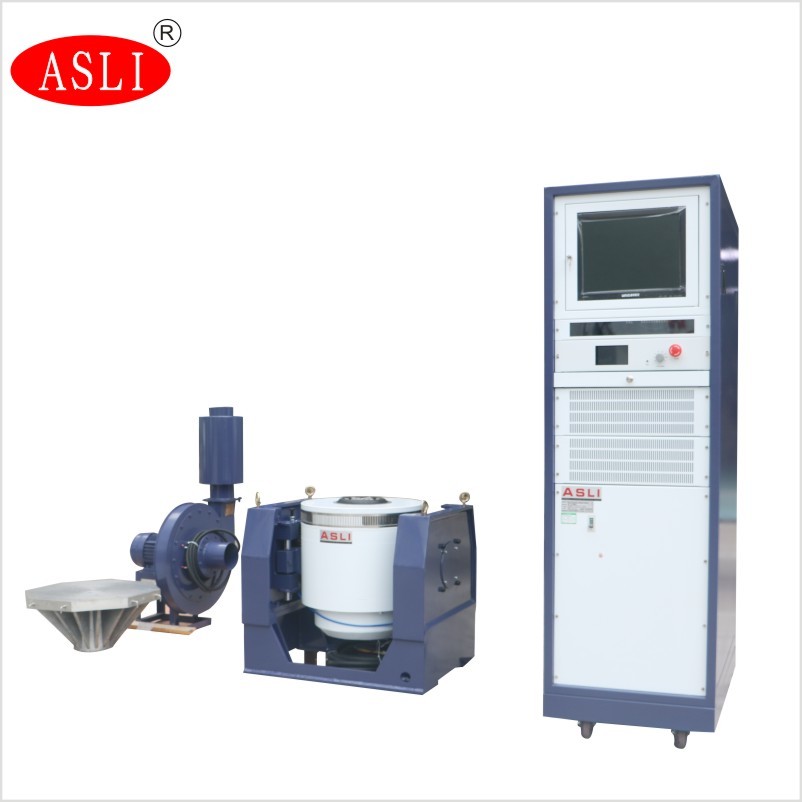

Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement

1
MOQ
$25,000
মূল্য
Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
নির্ভুলতা: ±5%
ভোল্টেজ: 380 ভি
সর্বোচ্চ গতি: 1.6m/s
স্থানচ্যুতি: 51 মিমি
কম্পন তরঙ্গ: সাইন, এলোমেলো, শক
কম্পনের দিক: উল্লম্ব কম্পন
শক্তি: 20 কেডব্লিউ
সুরক্ষা ক্লাস: IP55
কুলিং পদ্ধতি: এয়ার কুলিং
ফ্রিকোয়েন্সি রেঞ্জ: 3-3500hz
রেট ত্বরণ: 1000m/s2
Max. সর্বোচ্চ loading লোড হচ্ছে: 100 কেজি
চলন্ত কয়েল ওজন: 3.5 কেজি
চলমান কয়েল মাত্রা: Φ150 মিমি
সাইন ফোর্স রেট করা হয়েছে: 3000N
বিশেষভাবে তুলে ধরা:

Vertical vibration tester with 51mm displacement

,

High frequency electrodynamics vibration shaker

,

Vibration shaker system with high displacement

মৌলিক তথ্য
উৎপত্তি স্থল: গুয়াংডং, চীন
পরিচিতিমুলক নাম: ASLI
প্রদান
পণ্যের বর্ণনা
Vertical Vibration High Frequency Electrodynamics Vibration Tester A high-frequency vibration test system—also known as an electromagnetic high-frequency vibration table or swept-frequency vibration tester—uses electromagnetic force to drive a platform and generate controlled vibrations. This equipment simulates vibration environments that products encounter during manufacturing, transportation, and actual use, enabling comprehensive testing of reliability, structural
